Description
Features
Modular convenience

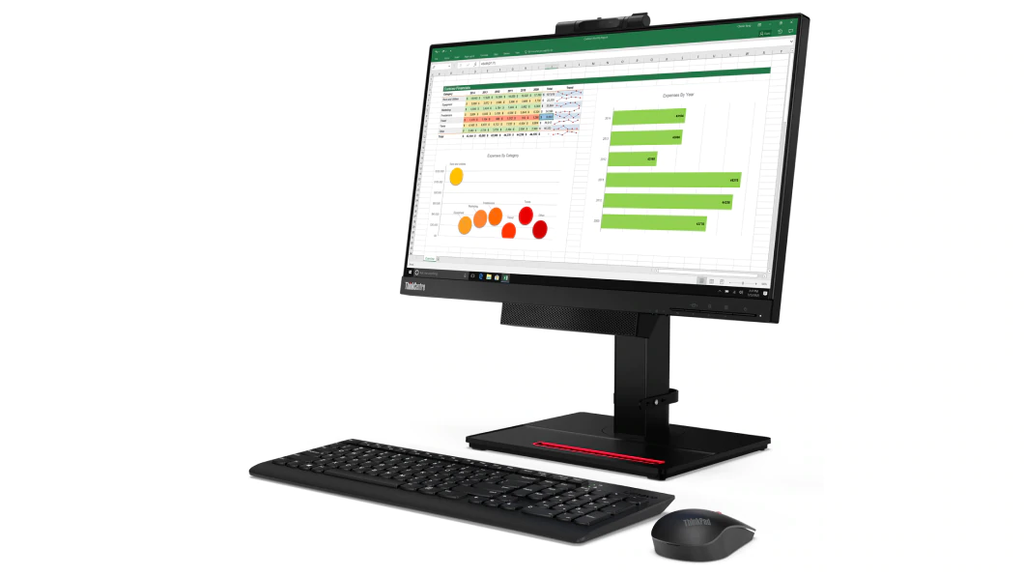

The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all-in-one (AIO)—simply plug a compatible ThinkCentre Tiny, Nano, or similar PC (not supplied) into the back of monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs*, so you can have the right all-in-one for your business now.
Purposeful design
This TIO’s 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort.
Connect and collaborate
Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you’re not videoconferencing. Additionally, the TIO22 Gen 4 has plenty of ports, all conveniently situated for you to recharge and connect your other devices.
Ease & comfort of use
The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from -5 to 30 degrees and even rotates up to 90 degrees clockwise.
Ports/Slots
| 1. Kensington lock slot | 4. USB-A in |
| 2. Power-in | 5. USB-A 3.2 Gen 1 |
| 3. DisplayPort |
Tech Specs
| Display | 21.5" WLED WVA borderless FHD (1920 x 1080) IPS, 250 nits, 72% NTSC, antiglare |
| View Area | 476.1 x 267.8 mm (18.74 x 10.54 inches) |
| Side Bezel Width | 2 mm |
| Anti-glare | Yes |
| Aspect Ratio | 16:9 |
| Resolution | 1920x1080 |
| Pixel Pitch | 0.24795 x 0.24795 mm |
| Dot / Pixel Per Inch | 102.4 dpi |
| Color Support | 16.7 Million |
| Camera | 720p with ThinkShutter |
| Speakers | 2x 2W, Stereo speakers |
| Microphone | Dual microphones |
| Color | Black |
| Panel | In-Plane Switching |
| Stand | Tilt, Swivel, Pivot, Height Adjust Stand |
| Video Connector | 1x DP 1.2 |
| USB Port | USB 3.1 Gen 1 Type-A (only available when a Tiny is installed or a PC is connected) |
| Power Adapter | 90W 88% Adapter |
| Dimensions with Stand (HxWxD) | 489x220.4x568.2 mm / 19.25x8.68x22.37 inches |
| Weight (Including Stand) | 6.58 kg / 4.51 lbs. |
| Cables Included | Undetachable 3-in-1 cable, embedded into TIO, connects to the I/Os of Tiny (Power connector, USB [supports USB 3.1 Gen 1 / USB 2.0], DisplayPort™) |
| Environmental Certification | Energy Star Certified, TCO 8.0, TCO Edge 2.0, EPEAT Silver, RoHS |
| Ergonomic Certification | TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free, TÜV Rheinland Eye Comfort |
| Base Warranty | 3-year |
| Compatible With | ThinkCentre M Series Nano ThinkCentre M Series Thin Client ThinkCentre M Series Tiny (Gen 2 and higher) ThinkStation P Series Tiny |
