Description
Features
Top business performer
The ThinkCentre M70t tower is designed to help you tackle your to-do list—quickly and efficiently. Depend on its powerful 10th Gen Intel® Core™ processor and fast DDR4 memory to handle your multitasking and data-crunching needs. Boost design productivity with dedicated graphics options up to AMD Radeon™ RX550x.
Satisfy the need for speed
Optional solid-state drive (SSD) storage offers fast access for boot up, searching and opening files and makes for a more responsive storage drive. While 3D NAND technology gives your SSD more reliable performance and improved power consumption.
Protect your data and your asset
This tower’s dTPM 2.0 chip enables you to encrypt your passwords and your data, helping to protect it against hacking, while BIOS-based Smart USB Protection prevents unauthorized access via peripheral. The ThinkCentre M70t PC is equipped with multiple optional physical security features: a padlock loop, to keep the side panel in place; a Kensington lock slot, to enable securing the entire PC; a smart cable clip that affixes peripheral device cables to the PC and that can be removed only from the inside; and a chassis e-lock, by which the motherboard triggers a valve to lock the chassis from inside.
Convenience and ease
Turn on the ThinkCentre M70t remotely and avoid having to reach under your desk first thing in the morning. Connect plenty of peripherals, thanks to nine USB ports—including one with fast-charging capability. Should you need to further configure your PC, its expansion slots make upgrades a snap. It also has support for up to three independent monitors.
Space-saving style
At a reduced 13.6 liter size, the ThinkCentre M70t PC saves space and is easy to deploy. Its Raven Black chassis has a clean, modern design that fits the evolving workspace. This PC will look great in any office and fit under any desk.
Convenience and ease
The M70t meets multiple global sustainability standards, including Energy Star® 8.0*, EPEAT® Silver, RoHS, and more. It’s also certified for low noise emission by TÜV Rheinland, so this PC is both eco- and employee-friendly.

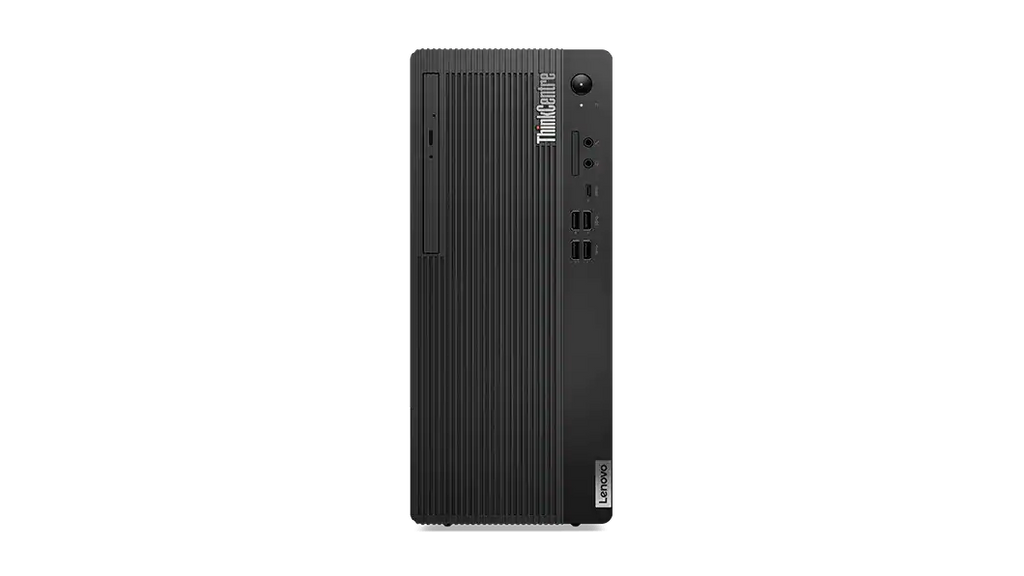

Ports
| 1. Power button | 8. 2 x USB 3.2 Gen 2 |
| 2. Optional Slim DVD-RW Drive | 9. Audio-out |
| 3. Optional 3-in-1 card reader | 10. HDMI |
| 4. Mic | 11. 2 x DisplayPort |
| 5. Headphone / mic combo | 12. Serial |
| 6. USB-C Gen 1 | 13. RJ45 |
| 7. 2 x USB 3.2 Gen 1 | 14. 4 x USB 2.0 |
Tech Specs
| Processor | Intel Core i5-10400 (6C / 12T, 2.9 / 4.3GHz, 12MB) |
| Operating System | Windows 10 Pro |
| Memory | 1x 4GB UDIMM DDR4-2666 |
| Max Memory | Up to 128GB DDR4-2933 |
| Storage | 1x 1TB HDD 7200rpm 3.5" |
| Graphics | Integrated Intel UHD Graphics 630 |
| Expansion Slots | One PCIe 3.0 x1, full-height (length < 215mm) One PCIe 3.0 x16, full-height (length < 215mm) Two M.2 slots (one for WLAN, one for SSD) |
| Power | 180W 85% |
| Dimensions (W x D x H) | 145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches) |
| Weight | 4.8 kg (10.6 lbs) |
| Connectivity | Optional Intel® AX201 WiFi 6 802.11AX (2 x 2) Optional Bluetooth® 5.0 Integrated RJ45 Gigabit Ethernet |
| Front Ports | 2x USB 3.2 Gen 1 2x USB 3.2 Gen 2 1x USB-C 3.2 Gen 1 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear Ports | 4x USB 2.0 1x HDMI 2x DisplayPort 1x serial (9-pin) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Base Warranty | 3-year, Onsite |
| Green Certifications | ErP Lot 3 TCO Certified 8.0 RoHS compliant |
